Product Information

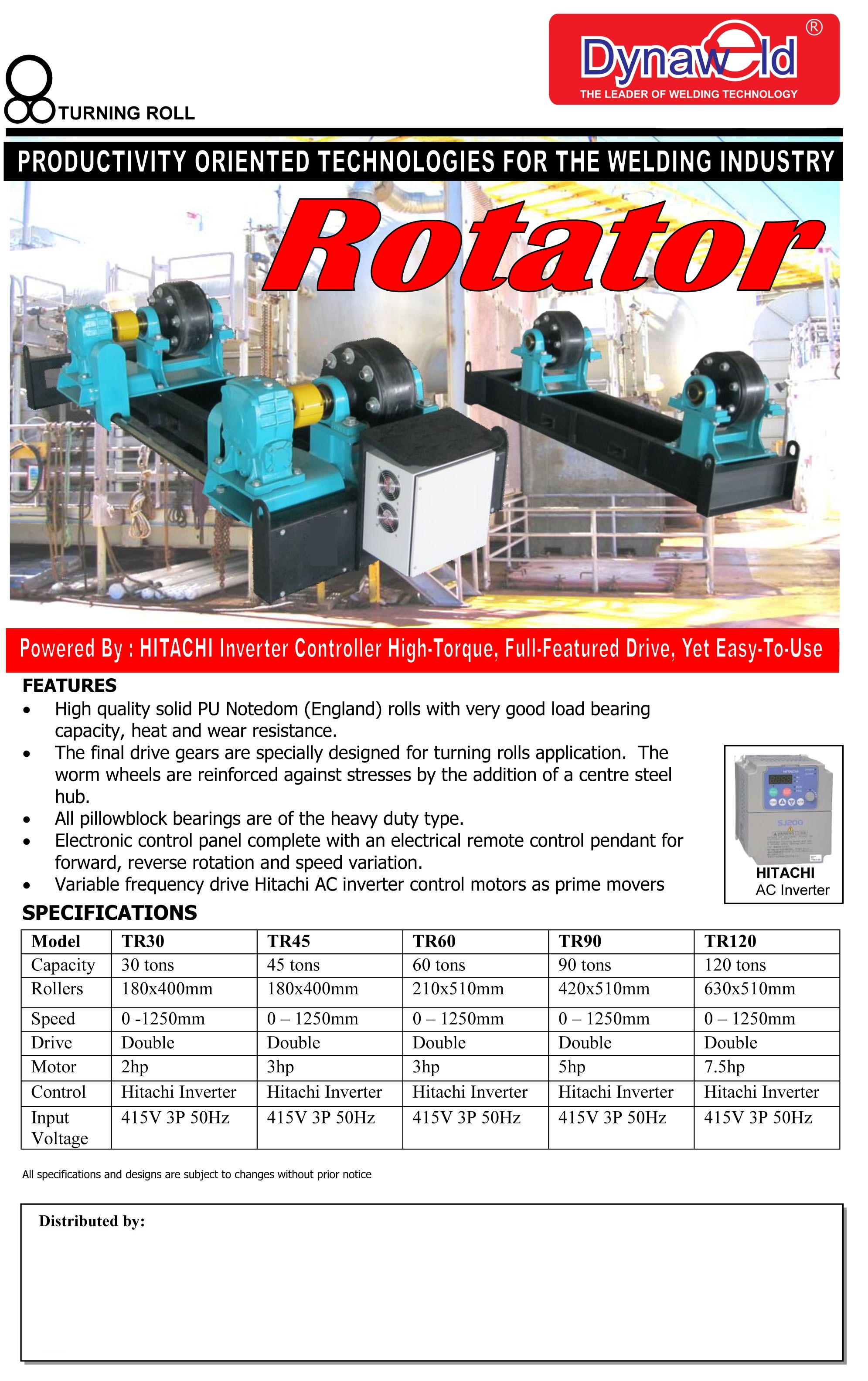

Welding Rotators
DYNAWELD Welding rotators are designed to move the work piece under the welding head. It's uses replaceable hard-wearing PU Notedom (England) tyres for all our Welding Rotators. Mounted onto a cast steel drum for maximum durability and superior traction. A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.
- Fully guaranteed and warrantied for three years.
- Powered by Hitachi Inverter AC Motor
- Heavy Duty Gear Box and Pillow Block Bearing (made in Taiwan)
| Model | TR30 | TR45 | TR60 | TR90 | TR120 |
| Capacity | 30Tons | 45Tons | 60Tons | 90Tons | 120Tons |
| Rollers | 180 X 400mm | 180 X 400mm | 210 X 510mm | 420 X 510mm | 630 X 510mm |
| Speed | 0- 1250mm | 0- 1250mm | 0- 1250mm | 0- 1250mm | 0-1250mm |
| Drive | Double | Double | Double | Double | Double |
| Motor | 2Hp | 3Hp | 3Hp | 5Hp | 7.5Hp |
| Control | Hitachi Inverter | Hitachi Inverter | Hitachi Inverter | Hitachi Inverter | Hitachi Inverter |
| Input Voltage | 415Vac 3P 50Hz | 415Vac 3P 50Hz | 415Vac 3P 50Hz | 415Vac 3P 50hz | 415Vac 3P 50Hz |
