Product Information
The Inverter IGBT MIG Welding Machine with External Remote Control Wire Feeder.
The "Dynaweld" Inverter IGBT NBM 500 is a High Technology design welding power source has a broad welding ampere range of 40-500amp. It designed in Three Phase (380/415volt)Constant Voltage that you can take to the most demanding and highest quality job sites.
The machine is packed with innovative unique features adjustable Inductance Current Control and the advance of Constant Voltage Control designed for flexibility of the welding applications.
The Easy Access control panel at front, it complete with the integration Welding Voltage and Current Output.
DYNAWELD ADVANTAGES
- Advanced inverter IGBT welding technology for superior arc performance.
- 85% effiency low power consumption for energy saving.
- The integration of welding Current and Voltage output, its provide flexibility to make an adjustment during the application.
- Weight at 55kgs(121lbs), for ultimate portability and durability.
- Over load protection for long life of the components.
- Manufacturing under an (CE) certificate standard.
- Backed by One year Dynaweld manufacturing warranty.
PROCESSES
- Stick Welding (GMAW)
Specifications
| Input Voltage | 380/415 Vac ± 15% 3P |
| Input Current | 35.8Kw (54.4A) |
| Output Current | 40 - 650A |
| Output Voltage | 17-42Vdc |
| Duty Cycle | 60% |
| Dimension (mm) | 640x350x610 |
| Weight | 63Kgs |
| Electrode Size | 1.0 - 2.0mm |
| Product Code | IGBT-NBM 500 |
|
Model |
NBM500 |
||
|
Parameter |
MMA |
MIG |
|
|
|
|
Adjustment range |
Preset |
|
Input power voltage (V) |
AC380V±15% 3PH |
||
|
Input voltage frequency (HZ) |
50/60 |
|
|
|
Rated input power capacity (KVA) |
23.5 |
23 |
|
|
Output current range (A) |
40-500 |
40-500 |
|
|
No-load voltage (V) |
77 |
|
|
|
Pre-flow(S) |
|
0-5 |
0 |
|
Post-gas(S) |
|
0-5 |
0 |
|
Burn back time(S) |
|
0-2 |
0.3 |
|
Duty cycle (%) |
60 |
|
|
|
No-load consumption (W) |
60 |
|
|
|
Weight (KG) |
40 |
|
|
|
Dimension (mm) |
622×280×480 |
||
BASIC UNIT INCLUDES
- 5 meter external remote control wire feeder.

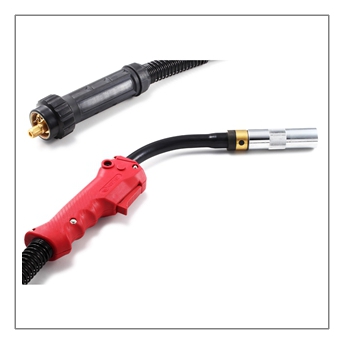

- 3 meter 500a
mp MIG Torch. - Owner instruction guide.

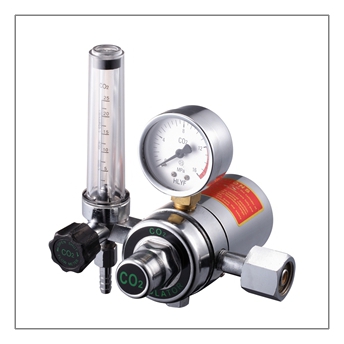

- GRHCO2 Dynaweld Heater CO2 Gas Regulator.

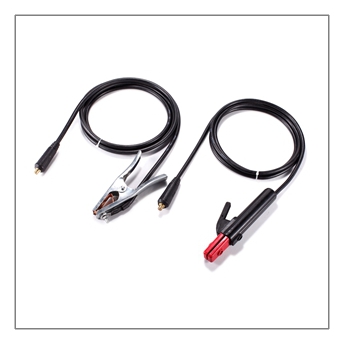

- EC-500HDSN Dynaweld Heavy Duty Welding Earth Clamp with 3 meter welding cable
