Product Information

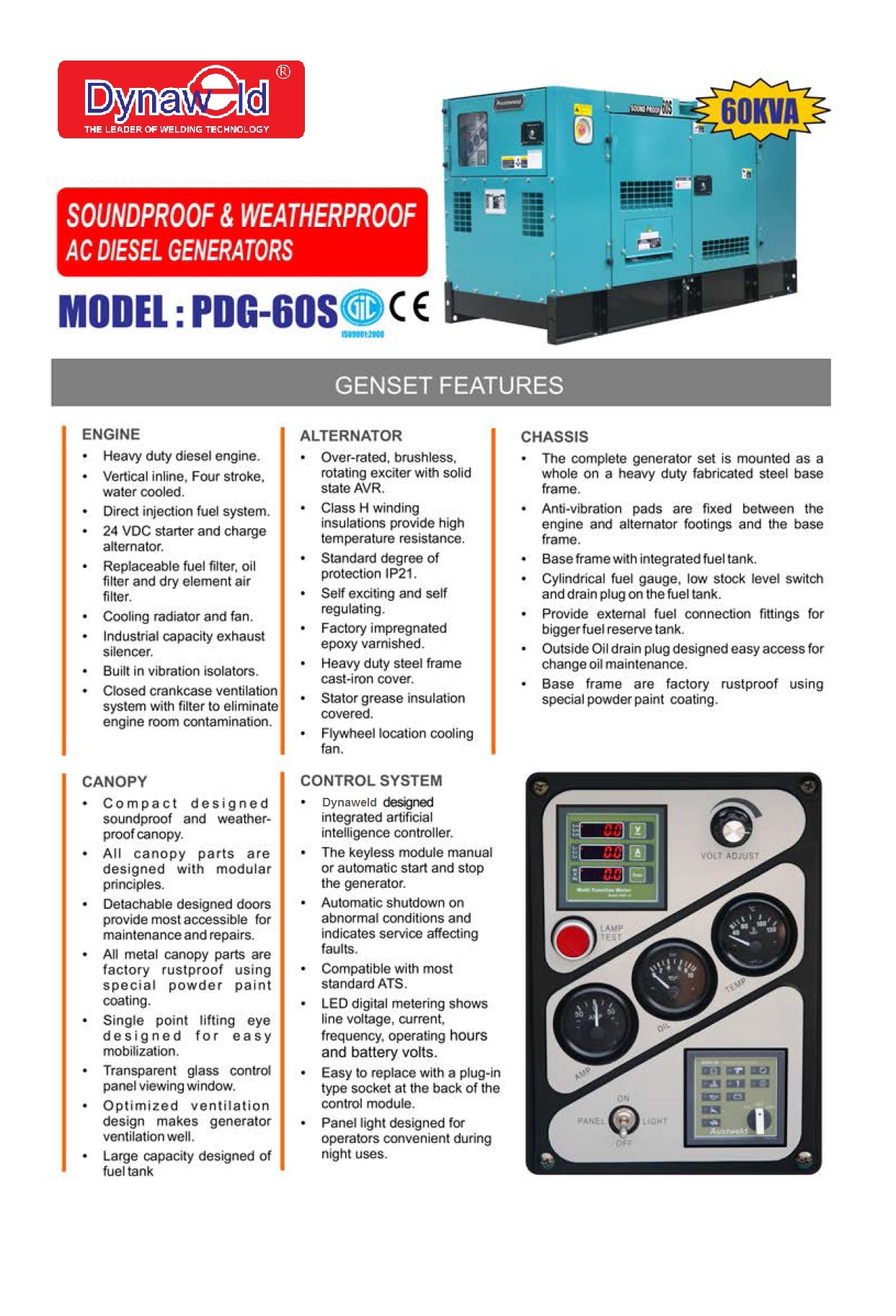

Dynaweld Diesel Generator combine simplicity with uncompromising standards of engineering and performance.
Whether it's a construction site, utility or special event application, Dynaweld Diesel Generator deliver energy that's reliable and hassle free. Dynaweld Diesel Generators connect easily, are simple to operate and run a long time between fill ups.
All Dynaweld Diesel Generators use Supper Silent enclosures and boast market leading performance and reliability.
ENGINE
- Original Japanese Engine(Kubota).
- Vertical inline, Four stroke, water cooled.
- E-TVCS injection fuel system.
- Replaceable fuel filter, oil filter and dry element air filter.
- Cooling radiator and fan.
- Industrial capacity exhaust silencer.
- Closed crankcase ventilation system with filter to eliminate engine room contamination.
ALTERNATOR
- Over-rated, brushless rotating exciter with solid state AVR
- Class H winding insulations provide high temperature resistance
- Standard degree of protection IP21
- Self exciting and self regulating
- Factory impregnated epoxy varnished
- Heavy duty steel frame cast-iron cover
- Stator grease insulating covered
- Flywheel location cooling fan
CONTROL SYSTEM
- Designed integrated artificial intelligence controller
- The keyless module manual or automatic start and stop the generator
- Automatic shutdown on abnormal conditions and indicates service affecting faults
- Compatible with most standard ATS.
- LED digital metering shows line voltage, current, frequency, operating hours and battery volts
- Easy to replace with a plug in type socket at the back of the control module
- Panel light designed for operators convenient during night uses
CHASSIC
- The complete generator set is mounted as a whole on a heavy duty fabricated steel base frame
- Anti-vibration pads are fixed between the engine and alternator footing and the base frame
- Base frame with integrated fuel tank
- Cylindrical fuel gauge, low stock level switch and drain plug on the fuel tank
- Provide external fuel connection fittings for bigger fuel reserve tank
- Outside Oil drain plug designed easy access for change oil maintenance
- Base frame are factory rustproof using special powder paint coating
CANOPY
- Compact designed soundproof and weatherproof canopy
- All canopy parts are designed with modular principles
- Detachable designed doors provide most accessible for maintenance and repairs
- All metal canopy parts are factory rustproof using special powder paint coating
- Single point lifting eye designed for easy mobilization
- Transparent glass control panel viewing window
- Optimized ventilation design makes generator ventilation well
- Large capacity designed of fuel tank
