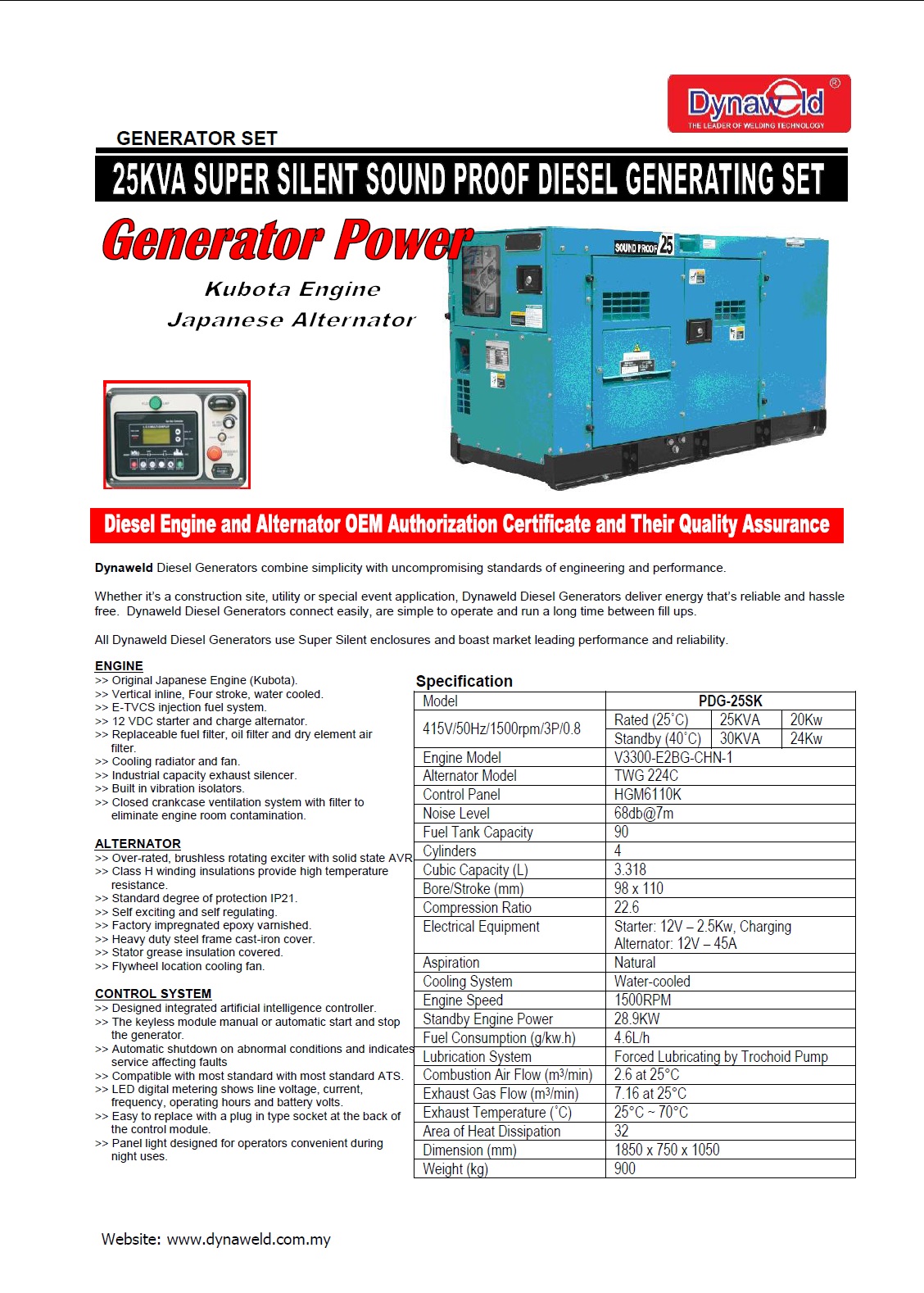

Product Information
Dynaweld Diesel Generator combine simplicity with uncompromising standards of engineering and performance.
Whether it's a construction site, utility or special event application, Dynaweld Diesel Generator deliver energy that's reliable and hassle free. Dynaweld Diesel Generators connect easily, are simple to operate and run a long time between fill ups.
All Dynaweld Diesel Generators use Supper Silent enclosures and boast market leading performance and reliability.
ENGINE
- Original Japanese Engine(Kubota).
- Vertical inline, Four stroke, water cooled.
- E-TVCS injection fuel system.
- Replaceable fuel filter, oil filter and dry element air filter.
- Cooling radiator and fan.
- Industrial capacity exhaust silencer.
- Closed crankcase ventilation system with filter to eliminate engine room contamination.
ALTERNATOR
- Over-rated, brushless rotating exciter with solid state AVR
- Class H winding insulations provide high temperature resistance
- Standard degree of protection IP21
- Self exciting and self regulating
- Factory impregnated epoxy varnished
- Heavy duty steel frame cast-iron cover
- Stator grease insulating covered
- Flywheel location cooling fan
CONTROL SYSTEM
- Designed integrated artificial intelligence controller
- The keyless module manual or automatic start and stop the generator
- Automatic shutdown on abnormal conditions and indicates service affecting faults
- Compatible with most standard ATS.
- LED digital metering shows line voltage, current, frequency, operating hours and battery volts
- Easy to replace with a plug in type socket at the back of the control module
- Panel light designed for operators convenient during night uses
Specifications
| Model | PDG-25SK | ||
| 415V/50Hz/ 1500rpm/3P/0.8 | Rated(25oC) | 25KVA | 20Kw |
| Standby(40oC) | 60KVA | 24Kw | |
| Engine Model | V3300-E2BG-CHN-1 | ||
| Alternator Model | TWG 224C | ||
| Control Panel | HGM6110K | ||
| Noise Level | 68db@7m | ||
| Fuel Tank Capacity | 90 | ||
| Cylinders | 4 | ||
| Cubic Capacity(L) | 3.318 | ||
| Bore/Stroke(mm) | 98x110 | ||
| Compression Ration | 22.6 | ||
| Electrical Equipment | Starter: 12V-2.5Kw, Charging Alternator: 12V-45A | ||
| Aspiration | Natural | ||
| Cooling System | Water-cooled | ||
| Engine Speed | 1500RPM | ||
| Standby Engine Power | 28.9KW | ||
| Fuel Consumption (g/kw.h) | 4.6L/h | ||
| Lubrication System | Forced Lubricating by Trochoid Pump | ||
| Combustion Air Flow (m3/min) | 2.6 at 25oC | ||
| Exhaust Gas Flow (m3/min) | 7.16 at 25oC | ||
| Exhaust Temperature (oC) | 25oC ~ 70oC | ||
| Area of Heat Dissipation | 32 | ||
| Dimension(mm) | 1850x750x1050 | ||
| Weight(kg) | 900 | ||
