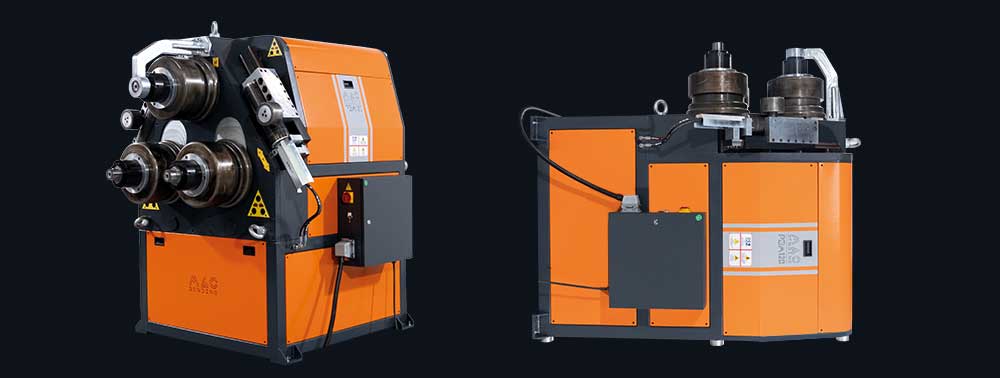

PBM-120 ANGLE ROLL BENDING MACHINE

STANDARD FEATURES

• 7” multi functional touch screen
• Rectangular profile, plate hardway-easyway, square, pipe, tube, angle leg, T-section, NPU, INP, IPE, HEA, HEB, HEM bending
• Circular, eliptical, oval shapes and different diameters bendings
• PLC control with manual, semi-automatical and full automatic options
• Three speed feature
• St-52 quality steel frame and parts
• Hardened and grounded rolls and shafts
• Bearing guidance system
• Three seperated rolls driven with hydraulic motor and planetary gear box
• Two axes hydraulic guide rolls
• Linear movement of bottom roll shafts with hydraulic system connected to body • Upper shaft support
• Telescopic front protection sheets
• Engine with brake
• Multi-purpose bending rolls (One set)
• Serpantine bending feature
• Vertical and horizontal working feature
• Adjustable buttons according to horizontal and vertical position with one button • Continuous turning of rolls with one button
• Hidden encoder against crushes that records turning movement
• Protection system against overloads
• Three stage mobile control panel seperated from machine
• Online remote connection
• Formula page that calculates radius and deepness
• Sound-light buzzer warning system
• Warning page that shows maintanence time
• Alarm page that shows the warnings in machine
• CE norms
• 400 volt / 50 Hz / 3 Ph
• Transparent protection cover for control panel

OPTIONAL FEATURES

• CNC unit
• Special rolls for different diameters
• Digital display for hydraulic guide rolls
• Hydraulic circular pitch device
• Variable speed feature
• Oil cooling system
• Joystick controller system
• Automation system for different voltage and frequency • Multi colour option
• Custom logo application with laser cutting

UPPER SHAFT SUPPORT APPARATUS

The upper shaft support apparatus prevents the upper shaft from flexing. Thus, it prevents the material from buckling and enables ideal and desired precision production. In this way, the upper shaft is protected and ensures a longer life span for the machine.

HYDRAULIC GUIDE ROLLS

In our profile and pipe bending machines, while PBM 60 has mechanical guide rolls, PBM 80 and bigger models have hydraulic guide rolls as a standard equipment. In that way, we offer to users more precise and more comfortable bending opportunity.

TELESCOPIC FRONT PROTECTION SHEETS

During the bending stage, they prevent the slag accumulated on the surface from entering the machine and damaging the bearings due to the structure of the material with the density difference of the light metal. The machine developed by our expert designers in their fields ensures to operate longer and more effectively by being protected with layered sealed sheets.

ENCODER

Hidden encoder against crushes that records turning movement.

HYDRAULIC CIRCULAR PITCH DEVICE

As Mac Bending, we offer hydraulic circular pitch device that we produce as an optional equipment to our valuable customers together with the serpentine bending feature in our PBM series.

MAINTENANCE LAMP

We have made maintenance easier with an interior lighting lamp that is manageable in the touch screen menu.

SERPENTINE (SPIRAL) BENDING FEATURE

Nowadays, the serpentine system, which is indispensable for the heat transfer concept, is the most important formula utilized in the industrial sectors. The serpentine system is defined as the efficient fulfillment of all kinds of substances in gas and liquid states, which circulate in pipes, the surface of which is expanded by bending. We provide a solution for our valuable customers with the serpentine bending feature in our PBM series that we produce in our factory.

HORIZONTAL AND VERTICAL WORKING FEATURE

Our PBM60, PBM80, PBM100 and PBM120 Profile and Pipe bending machines have both horizontal and vertical working features. Ease of use is provided by changing the button positions on the control panel in accordance with the positions of our machines.

P: Special Rolls (for more precise bendings)

C: Pulling Device

The specifications in table based on steel with yield point 240N/mm2 Mac Bending reserves the right to change all above specifications without prior notice. All measurements in the capacity table are in millimeters
